GA Plus (The ultimate smart solution, driven by efficiency)
At Atlas Copco, we have always looked ahead. Which products and services will make our customers more successful. ?
Your future drives the Atlas Copco team every day. It is the reason why we devote so much time and so many resources to innovation. If there are technologies that will advance your productivity, we will find them. That is what we have been doing for almost 150 years now, setting new standards in compressed air reliability, efficiency, connectivity, and sustainability.
It’s that last principle that now comes first. Sustainability is no longer something we should strive for, but something we must achieve. Productivity and growth will have to be built on sustainability. Atlas Copco our products, our services, and our people-will help you get there, as we always have.
Atlas Copco’s GA compressors bring you outstanding sustainability, reliability and performance, while minimizing the total cost of ownership. A choice of three premium compressor types (GA VSD, GA+ and GA) provides you with the compressed air solution that perfectly matches your requirements with clear value propositions. Built to perform even in the harshest environments, these compressors keep your production running efficiently.
Calculates and achieves the ideal oil-injection temperature based on actual operating conditions to maximize efficiency.
Constantly monitor the pressure drop and thus any energy losses in the inlet filter, the oil filter and the oil separator.
Gives you additional energy savings by recovering and re-using up to 75% of the heat the compressor produces

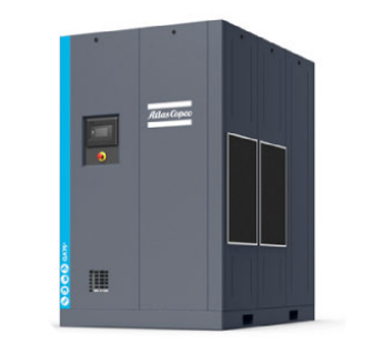

GA 37-90 Premium Performance
- High-performance Free Air Delivery.
- Premium quality at the lowest initial investment.
- Integrated refrigerant dryer.
- Elektronikon® Swipe controller (Elektronikon Touch on GA 90, optional for other GA models).
- LINK real-time, remote monitoring and optimization.

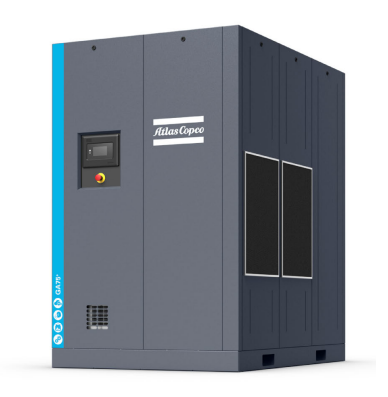

GA 30+-75+ Industry-leading efficiency
- Best-in-class Free Air Delivery.
- Lowest energy consumption for applications with a stable air demand.
- Intelligent features boost efficiency and reliability.
- Integrated refrigerant dryer.
- Elektronikon® Touch controller.
- SMARTLINK real-time, remote monitoring and optimization.

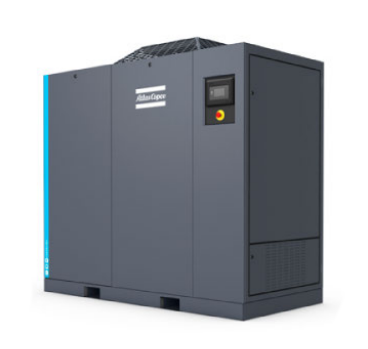

GA 37-90 VSD Ultimate energy savers
- Up to 35% energy savings.
- Industry-leading operating turndown range.
- Wide pressure selection: 4-13 bar.
- Start under system pressure, no blow-off.
- Integrated refrigerant dryer.
- In-house designed NEOS inverter. Elektronikon® Touch controller.
- SMARTLINK real-time, remote monitoring and optimization.
| Compressor type |
Working pressure | Capacity FAD* | Installed motor power |
Noise level** |
Weight WorkPlace |
Weight WorkPlace Full Feature |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| l/s | m³/min | cfm | kW | hp | kg | lbs | kg | lbs | ||||||
| bar(e) | psig | min | max | min | max | min | max | dB(A) | ||||||
| GA 37 VSD | 4 / 58 | 28.5 | 127.5 | 1.7 | 7.7 | 60.4 | 270.2 | 37 | 50 | 66 | 1112 | 2452 | 1197 | 2639 |
| GA 45 VSD | 7 / 102 | 26.9 | 150.4 | 1.6 | 9.0 | 57.0 | 318.8 | 45 | 60 | 69 | 1126 | 2482 | 1211 | 2670 |
| GA 55 VSD | 10 / 145 | 25.4 | 154.8 | 1.5 | 9.3 | 53.8 | 328.2 | 55 | 75 | 69 | 1435 | 3164 | 1545 | 3406 |
