Club Hammers Indestructible Handle
A Club hammer is a small sledge hammer with relatively lighter weight and shorter handle.
Handle

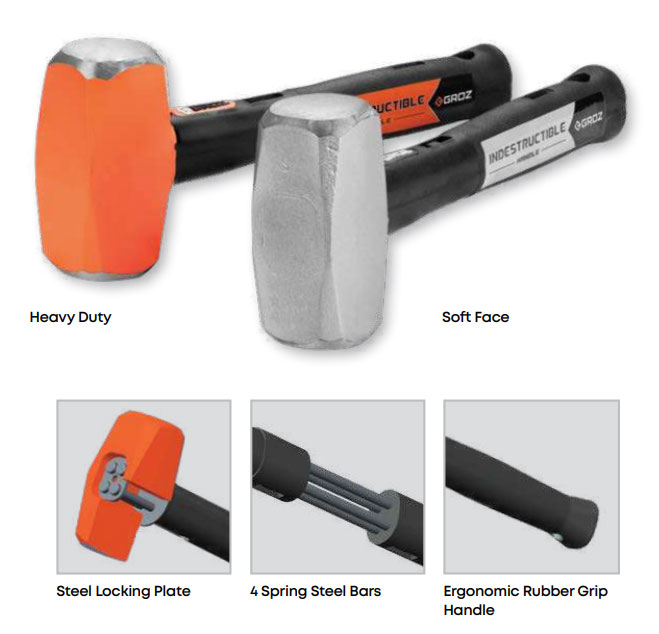

4 spring steel bars that run through the handle are locked with the hammer head using steel locking plate, ensuring that the head never gets dislodged Ergonomic rubber grip handle absorbs vibration and reduces fatigue Special bonding process ensures that the handle & head never get loose.
Head
Available in 2 types
Specification
WORKING TEMPERATURE RANGE : -10°C TO 50°C
WARNING
Do not strike objects harder than 46 HRC. Striking items of a greater hardness is liable to cause fracture or chipping.
a. Heavy Duty 50-58 HRC Head
Forged from special steel, the hammer head is induction case hardened 50-58 HRC. These hammers are especially useful in demolition work where the struck surface is softer than the hammer head.
UTILITY
- Driving in stakes.
- Metal-forming.
- Setting bolts.
- Minor demolition work.
| CAT NR. |
HEAD WEIGHT | OVERALL LENGTH | BOX QTY. |
||
|---|---|---|---|---|---|
| (LBS) | (KG) | (INCH) | (MM) | ||
| * CHID/2.5/12 | 2.5 | 1.1 | 12 | 300 | 8 |
| * CHID/4/12 | 4 | 1.8 | 12 | 300 | 8 |
| * CHID/4/16 | 4 | 1.8 | 16 | 400 | 8 |
b. Soft Face 30 HRC Head
Forged from special steel, the hammer head is induction case hardened & then tempered to reduce hardness within 30-35 HRC. Softer head is designed to mushroom when striking harder base materials. Prevents damage to struck work pieces.
UTILITY
- Metal forming
- Over ground mining
- Maintenance of cutting tools
| CAT NR. |
ORD NR. |
HEAD WEIGHT | OVERALL LENGTH | BOX QTY. |
||
|---|---|---|---|---|---|---|
| (LBS) | (KG) | (INCH) | (MM) | |||
| CHID/SF/2.5/12 | 34550 | 2.5 | 1.1 | 12 | 300 | 8 |
| CHID/SF/4/12 | 34551 | 4 | 1.8 | 12 | 300 | 8 |
