Air Operated153 Grease Ratio Pumps
Pump dispenses grease at pressures upto 50 times the air inlet pressure
Designed to work in tough conditions; these are ideal for use in industry, workshop, farm, construction or as
part of the Mobile Grease System.
All metal construction, fully CNC machined with hardened wear resistant moving parts.
Reciprocating piston operated 63 mm dia. air motor.
Strainer at suction tube inlet removes dirt, debris etc from entering into the system.
WETTED COMPONENTS
Steel, Brass, Aluminium, Polyurethane & Nitrile Rubber.
RECOMMENDED USE
Light & self collapsing grease upto NLGI 2
Specification
- WORKING PRESSURE: 30-150 PSI (2–10 BAR)
- MAXIMUM AIR PRESSURE: 150 PSI (10 BAR)
- AIR INLET CONNECTION: 1/4″ BSP (F)
- PUMP OUTLET CONNECTION: 1/4″ BSP (F)
- AIR CONSUMPTION: 230 LPM
- NOISE LEVEL: 81 db
| CAT NR. | DRUM SIZE | SUCTION TUBE | DRUM COVER DIA. | O.D. STEEL END | O.D. PLATE | I.D. GROMMET | BOX QTY. |
|---|---|---|---|---|---|---|---|
| GREASE PUMP KIT | |||||||
| GP1/ST/501/BSP | 20-30 KG | 440 MM | 305 MM | 241 mm | 288 mm | 29.5 mm | 1 |
| GP2/ST/501/BSP | 50-60 KG | 730 MM | 381 MM | 322 mm | 380 mm | 29.5 mm | 1 |
| GP3/ST4/501/BSP | 180 KG | 950 MM | 612 MM | 550 mm | 602 mm | 29.5 mm | 1 |
| PUMP ONLY | |||||||
| GP3/501/BSP | 180 KG | 950 MM | - | - | - | - | 1 |

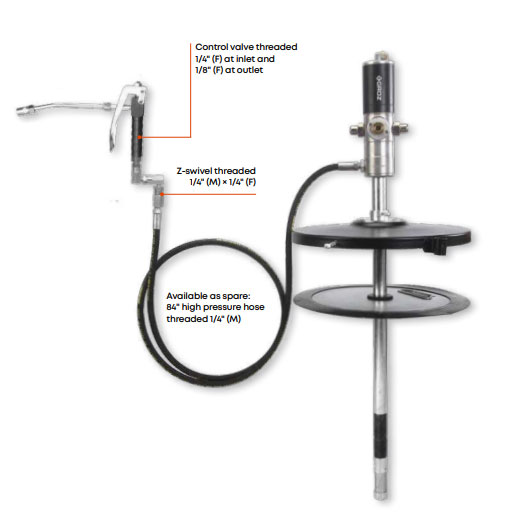

GREASE PUMP KITS - WITH FOLLOWER PLATE, DRUM COVER, 84" HIGH PRESSURE HOSE & GREASE CONTROL VALVE
PORTABLE AIR OPERATED GREASE PUMP ASSEMBLY WITH BUCKET
| Cat Nr. | Bucket Capacity (KG) | Box Qty. |
|---|---|---|
| Portable Air Operated Grease Pump Assembly With Bucket | ||
| ★BGRP/15 | 15 | 1 |
| ★BGRP/30 | 30 | 1 |
| ★BGRP/50 | 50 | 1 |
